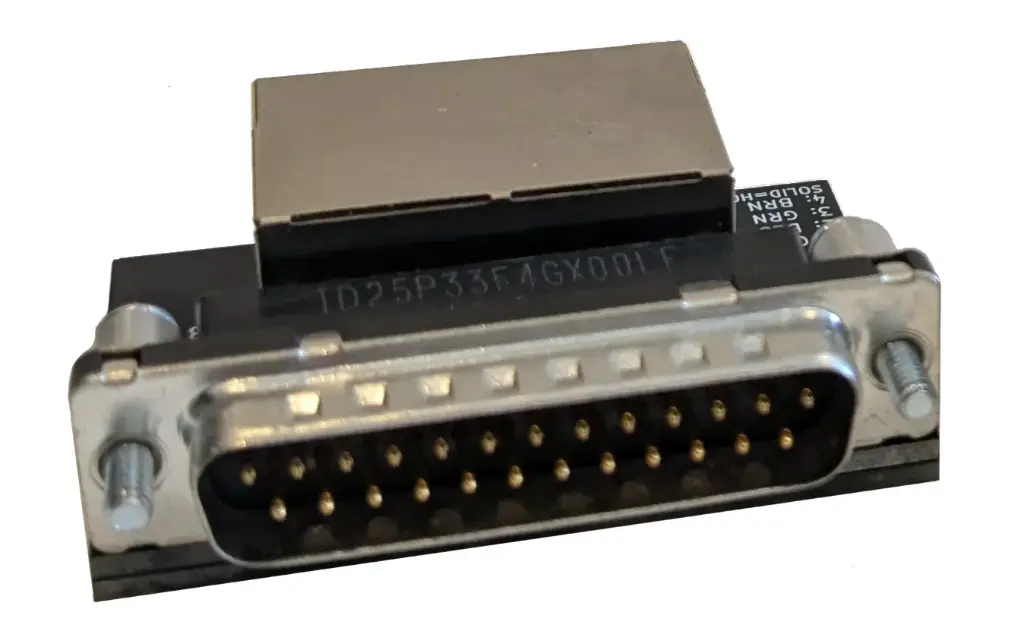

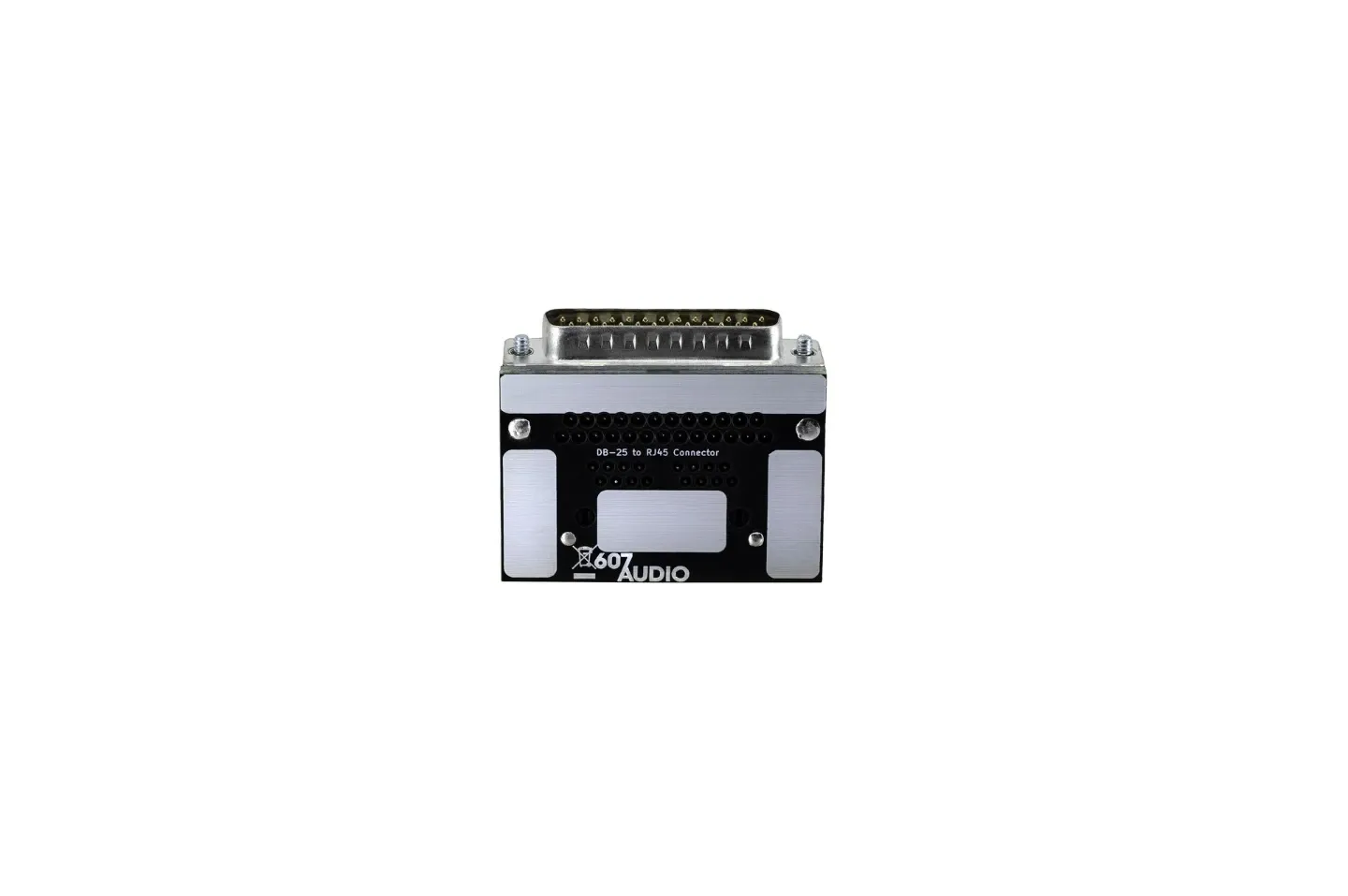

DB-25 to CAT5 Adapter
A cost effective way to connect DB-25 Connector equiped devices together using Category 5/6 networking cables. Designed to be used with both shielded and unshielded cable. The back of each connector comes with a scribble strip for labelling. Both the RJ45 and DB-25 connectors have gold plated pins for extended life.
AES-72-Type 4E Pinout. T568B cable the pairs:
Orange - Channel 1
Blue - Channel 2
Green - Channel 3
Brown - Channel 4
Solid wire hot, white wire cold.

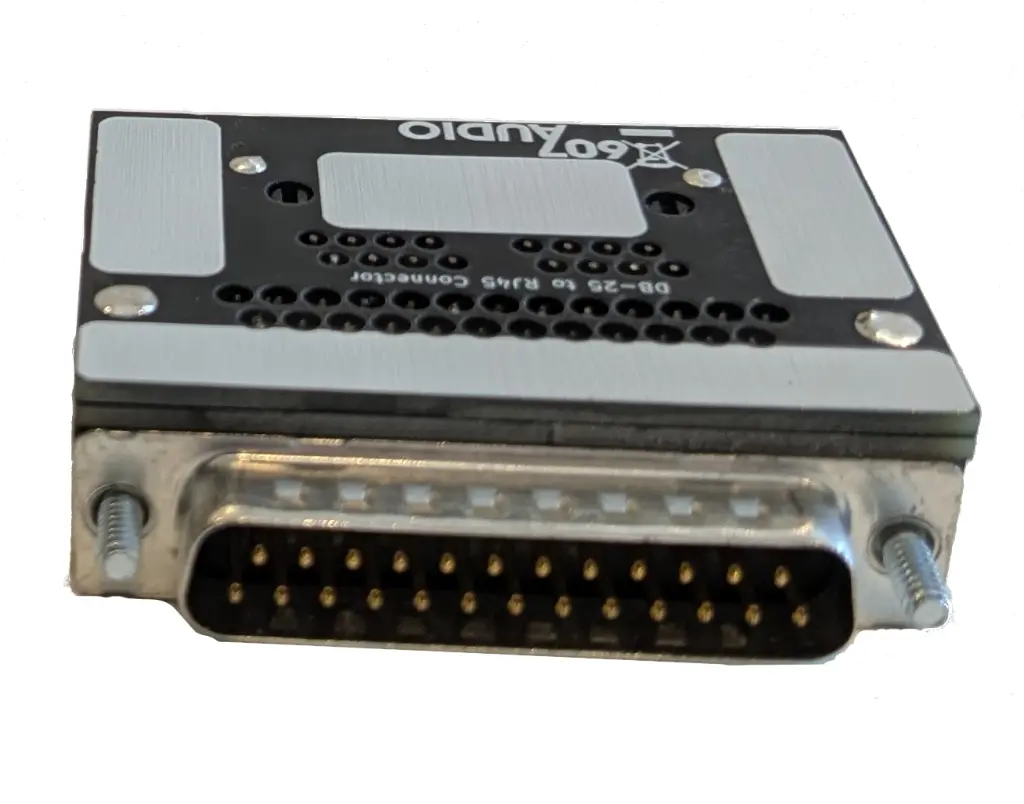

The back of the unit has a built-in scribble strip for easy labelling.
AES-72-Type 4E Pinout. T568B cable the pairs:
Orange - Channel 1
Blue - Channel 2
Green - Channel 3
Brown - Channel 4
Solid wire hot, white wire cold.
The back of the unit has a built-in scribble strip for easy labelling.
