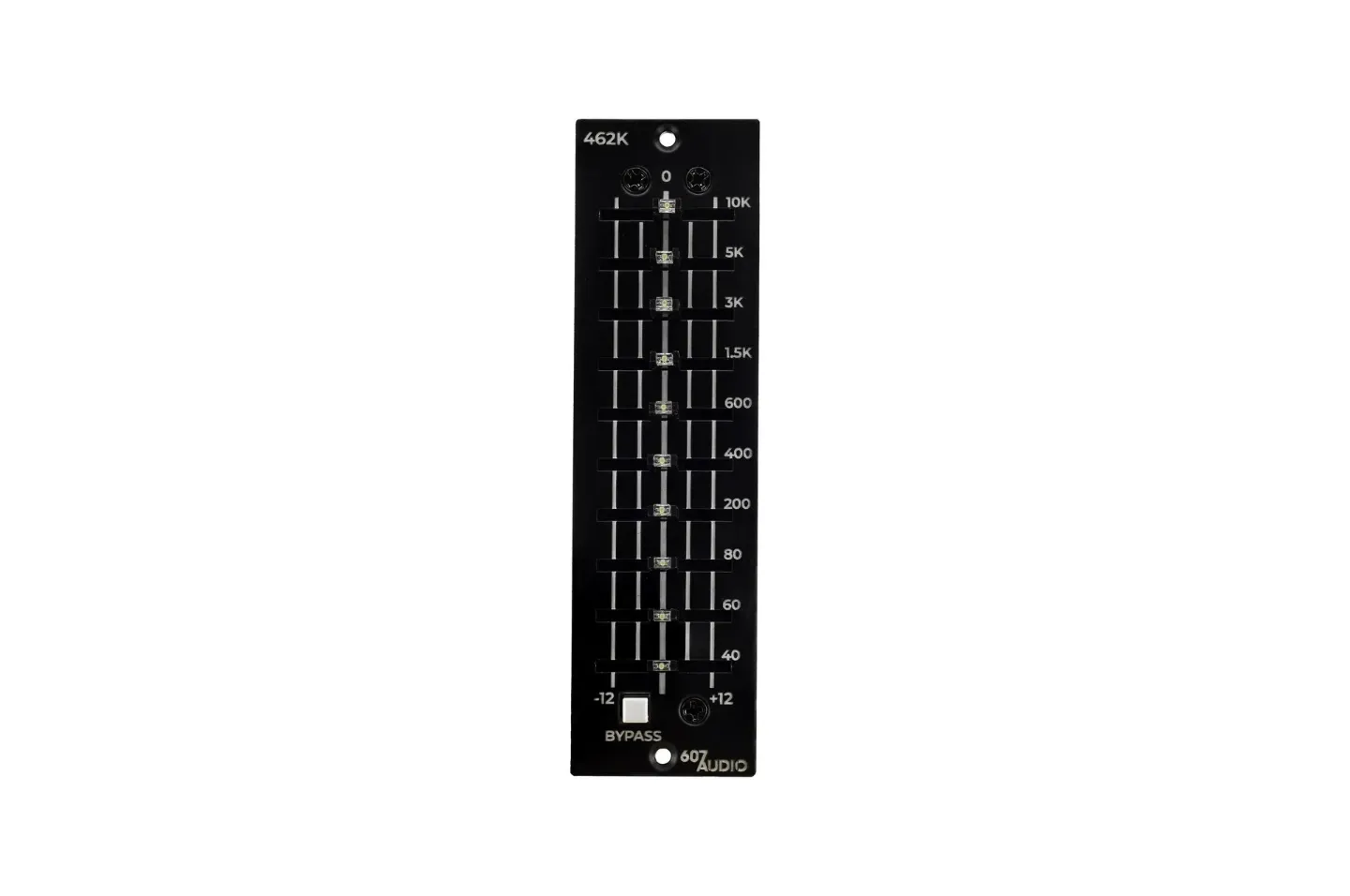

The 462K 10-Band Equalizer is a graphic, fixed band, proportional Q design. This means that as you increase the boost or cut of a particular frequency the Q adjusts from a broad to narrow. It gives you alternate fixed EQ points of 40/60/80/200/400/600/1.5K/3K/5K/10K. The frequency spread was established with EQing Kick drums in mind. You can add boom, thump, dig out mud, and add punch and clarity with this EQ. It's also great on bass, electric guitars and keyboards.
It features:
Polypropolene/Polystrene film capacitors
Audio-grade Electrolytic capacitors in the signal path and Low ESR for power
1% metal film resistors (hand matched where required)
THAT 1200-series input reciever with 90dB CMRR at 60Hz
Burr-Brown Op-amp in the gyrator circuit
Custom USA made Nickel/Steel OutputTransformer
Custom centre-detent slide-potentiometers (Centre LED lights to indicate 'engaged')
Relay True-Bypass
nine.18 op-amp
