462 - 500

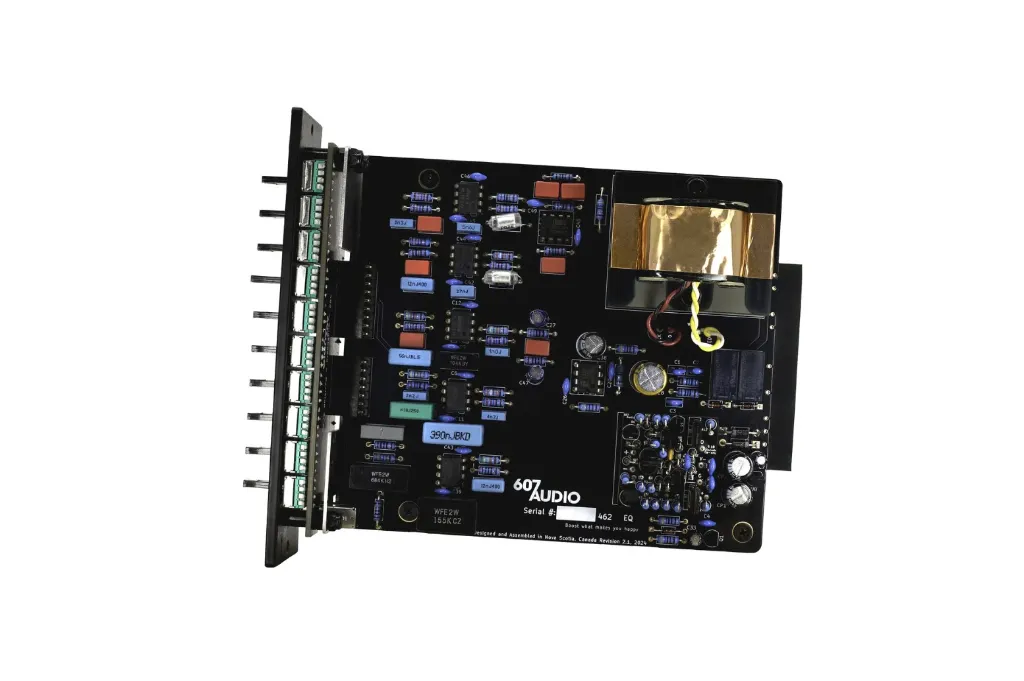

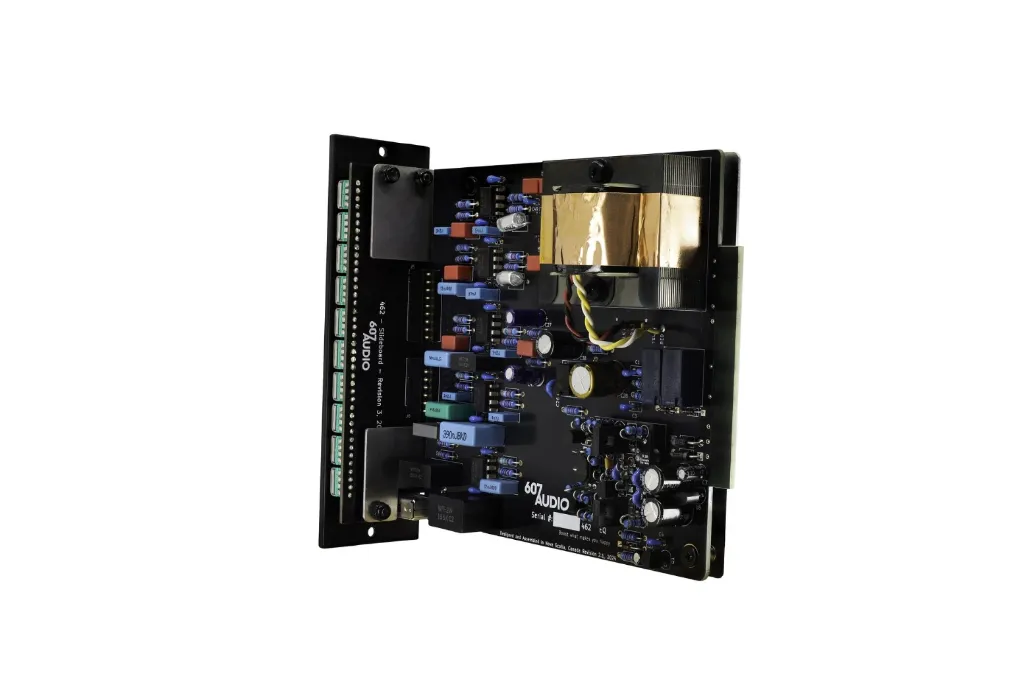

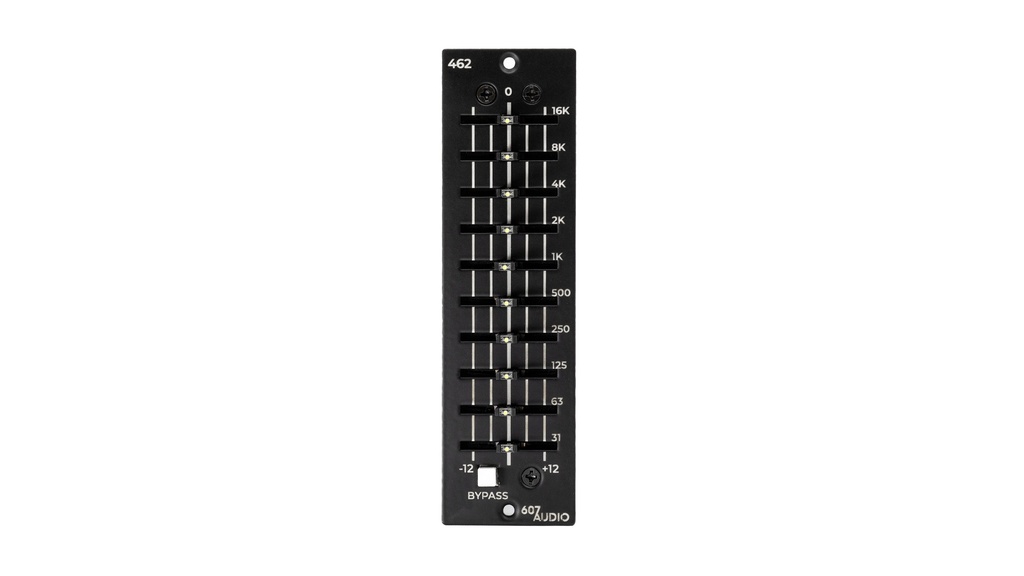

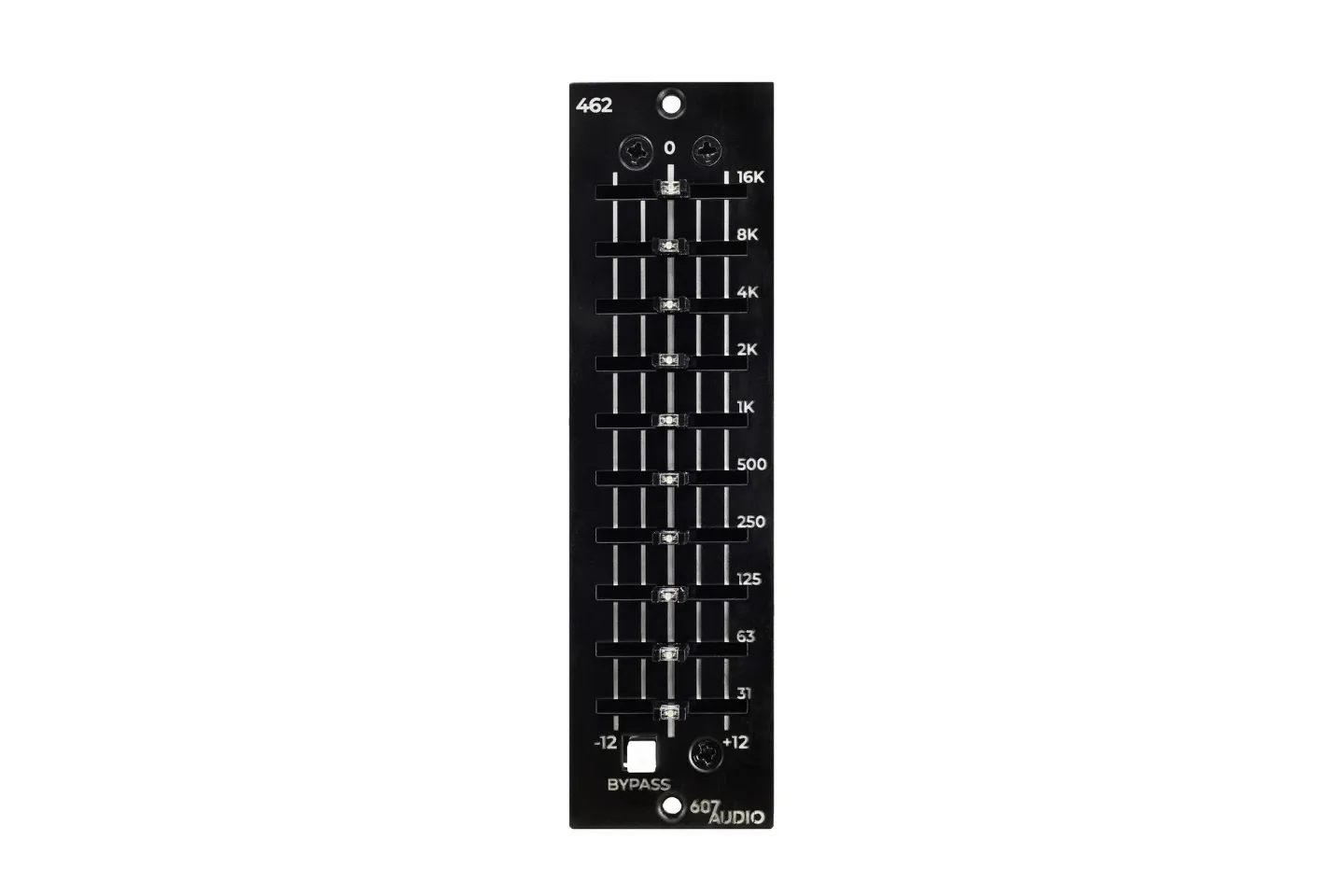

The 462 10-Band Equalizer is a graphic, fixed band, proportional Q design.  This means that as you increase the boost or cut of a particular frequency the Q adjusts from a broad to narrow.  It gives you the classic fixed EQ points of 31/63/125/250/500/1K/2K/4K/8K/16K.  The 462 is a general workhorse that will provide musical and defined EQ on any source material, but shines particularly on guitars, drums and vocals.  The circuit is based around a very low distortion line reciever, that feeds high-precision op-amps to drive the EQ circuit, then through a socketed op-amp (2520 format) into a custom wound Nickel/Steel output transformer for the ultimate sonic enhancement.


Key Features:

Polypropolene/Polystrene film capacitors
Audio-grade Electrolytic capacitors in the signal path and Low ESR for power rails
1% metal film resistors (hand matched where needed)
THAT 1200-series input reciever with 90dB CMRR at 60Hz
Burr-Brown Op-amp in the gyrator circuit
Custom USA made Nickel/Steel OutputTransformer
Custom centre-detent slide-potentiometers with the centre LED to indicate operation
Relay True-Bypass
nine.18 op-amp
